Digital Watchdog VMAX A1 G4 Universal HD over Coax 16-channel DVR
From
$895.00

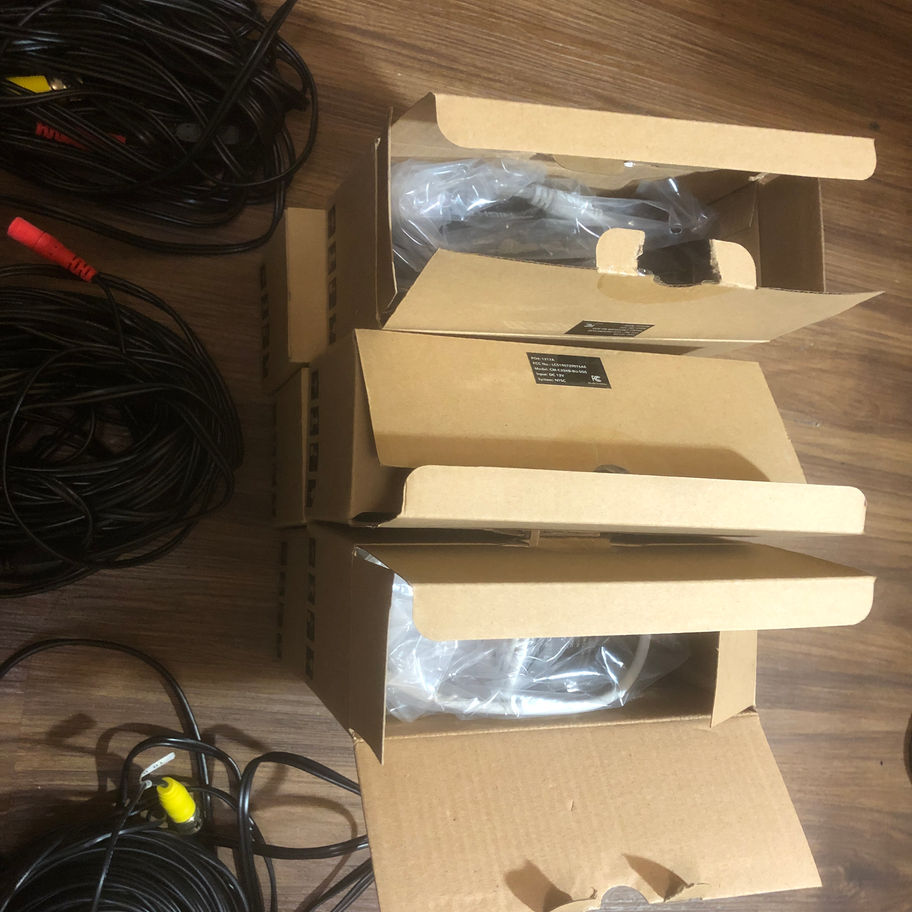

Paired with 6 Night Owl CM-C20XB-BU-SGS Day & Night Coax Cameras
Universal HD over Coax® DVR records HD-Analog, HD-TVI and standard coax up to 4K resolution
Advanced H.265, H.264 Linux® embedded DVR
16-channels, 480fps real-time 30fps recording and up to 4K recording resolution at 112fps (7fps per channel)
PathFinder™ easy remote connection
Remote management with C3™ CMS
Event camera group recording
Complete system analysis with real-time system and network status monitoring
Mobile Application for iOS® and Android® devices
OSD and PTZ control via coax (UTC)
Signal hybrid detects the camera signal automatically
Instant channel swap, no need to disconnect or reboot the DVR
Snapshot Notify™: programmable interval snapshot email notifications
4K (3840 x 2160) True HD, VGA and CVBS video outputs
Up to 32TB internal storage
Transfer real-time data using Real Time Streaming Protocol (RTSP)
HDD calculation and auto-recording configuration
Quantity
Specifications
Hardware
Display Modes: 1, 10, 16, 4, 6, 9, Sequence
Display Speed: Up to 30fps per channel
Local Video Output Resolution: 1024x768, 1280x1024, 1280x720, 1920x1080 (1080p), 800x600, 3840×2160 (4K), 2560x1440 (1440p)
Local Video Outputs: 1x CVBS output, 1x True HD output, 1x VGA output
Max Supported Recording Resolution: 4K (3840×2160)
Server's Operating System: Embedded Linux®
Supported Signals: Analog up to 960H, HD-Analog, HD-TVI
Video Compression: H.264, H.265
Input channels: 16 Channels
Raw internal storage options: 2TB, 4TB, 6TB, 8TB, 10TB, 12TB, 18TB, 22TB, 32TB
HDD healthcheck: Temperature, S.M.A.R.T. with email notifications
Max HDD Bay: 2 x SATA HDD
VMS features
Alarm in/out: 16 alarm outputs, 4 alarm outputs
Audio in/out: 1 output, 8 inputs
Performance features: Camera Color Control, Covert Channel, Digital Zoom in live and playback, Import and export settings, Real-time temp alert
Playback Functions: Calendar, Event search, Smart motion search, Thumbnail search, Timeline
Playback speed: x1, x16, x2, x32, x4, x64, x8, x99
Post-recording: 0~5 minutes
Pre- recording: 0~5 seconds
PTZ control: RS485, UTC
Recording Modes: Continuous, Emergency, Motion detection, Pre- and post-alarm, Quick backup, Scheduled, Sensor
Recording Resolution and Recording Rate: 1280x720 (HD): 480fps, 1920x1080 (HD): 480fps, 2560x1600 (4MP): 240fps, 2560x1944 (5MP): 192fps, 3MP (1920x1536): 288fps, 4K (3840x2160): 112fps, 720x480 (SD): 480fps, 960x480 (960H): 480fps
System Operation: Graphical user interface (GUI), Joystick Controller (optional), USB mouse (included)
Network
Backup: Local backup via USB, Network backup via CMS
Ethernet Ports: 1x 1G Ethernet (RJ45)
Firmware Upgrade: CMS over network, FTP, USB
Protocol: DHCP, RTSP, Static fixed IP, uPNP
System recovery after power failure: Auto-reboot and journaling file system
Transation verification: 4K (3840x2160): 112fps
Transmission speed live: 1280x720 (HD): 480fps, 1920x1080 (HD): 480fps, 2560x1600 (4MP): 240fps, 2560x1944 (5MP): 192fps, 3MP (1920x1536): 288fps, 960x480/576 (960H): 480fps,
Remote Client: C3 CMS, DW Mobile Plus
Electrical
Power Consumption: 48W - 60W A UPS is recommended
General
Audio codec: ADPCM
Operating Temperature and Humidity: 0 ~ 80% RH, 10~90% RH, 32~113 °F (0~45 °C), 41 ~ 104 °F (5~40 °C)
Recorder Dimensions(H X W X D): 1.77" x 14.96" x 10.58" (45 x 380 x 268.8mm), 15.15" x 12.4" x 1.88" (385 × 315 × 48 mm)
Serial ports: RS485
USB interface: Yes
Warranty: 1 Year Limited Warranty
Certification: CE FCC NDAA TAA Compliance
Form Factor: Embedded
